撇捺之間 穿鬥陌阡



「在接受這個商業命題的時候,我首先會思考如何轉譯為建築語言,造一座適合於成都遠洋太古里的建築,其次便是希望在這座限時建築到期後,材料本體可以達到循環回收再利用。我開始從竹子入手,竹子是地球的毛髮,兩三年的時間就能完成一輪生長週期,且生生不息。所以這是竹構建築,一座使用最易取得的材料搭建的,一座最環保的建築。」



Between the strokes, through alleys and lanes.


"When accepting this business proposition, my first thought is about how to translate it into architectural language, to create a structure that fits in Chengdu's Swire Pacific Place. Secondly, I hope that when the temporary structure expires, the materials themselves can be recycled and reused. I began with bamboo. Bamboo is like the hair of the earth, completing a growth cycle in just two or three years and endlessly regenerating. Therefore, this is bamboo architecture, built with the most easily available material - it's the most eco-friendly structure."

建築會意  漢字會形

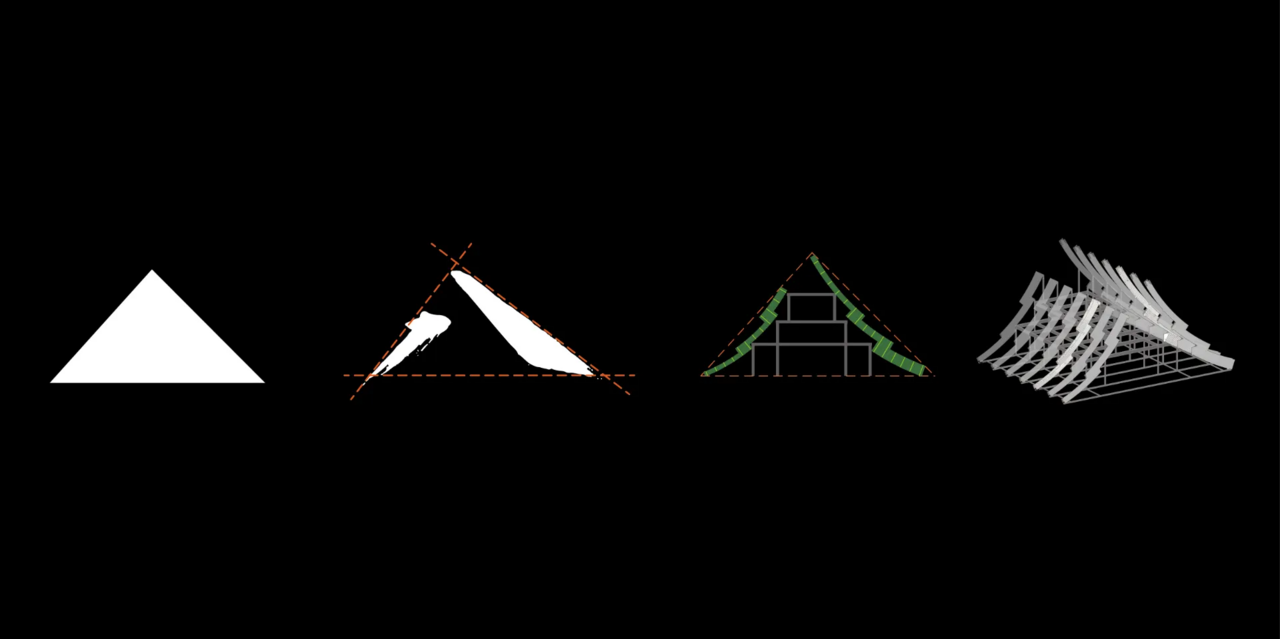

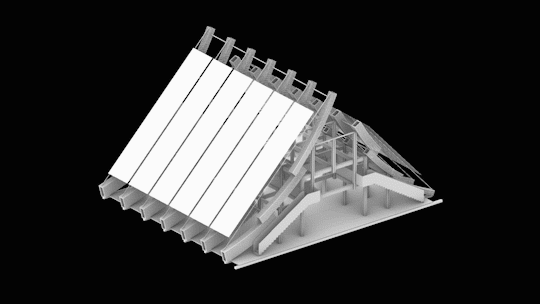

「人、入、八」三個漢字,皆由一撇一捺書寫而成,其代表的是活動核心主旨「人與人的連接」,「連接世界的入口」以及「八週年的時間之旅」。而在書寫撇捺筆畫的同時,我們發現其呈現的是一種十分穩定的三角形關係,完全符合建築的力學原理。因此,以撇捺為原型的建構體系,應運而生。



Architecture understands meaning, Chinese characters understand form.
"The Chinese characters for 'person,' 'enter,' and 'eight' are all composed of a downward left stroke and a downward right stroke. They represent the core theme of the event: 'the connection between people,' 'the gateway to the world,' and 'the eight-year journey of time.' While writing these strokes, we discovered that they present a very stable triangular relationship, which perfectly conforms to the principles of architectural mechanics. Therefore, a construction system based on these strokes naturally emerged."


MORE


MORE

穿斗建築 阡陌交通

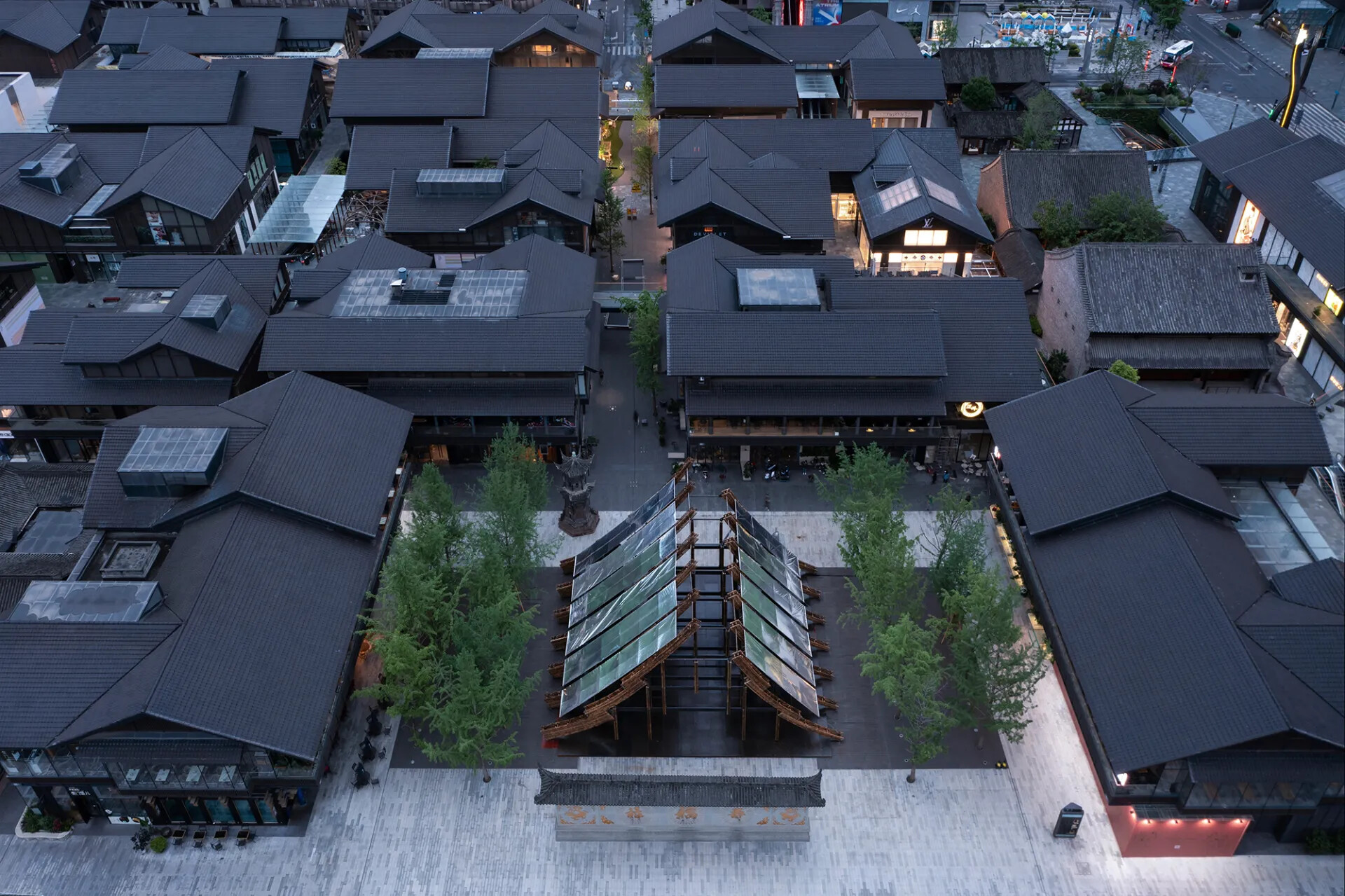

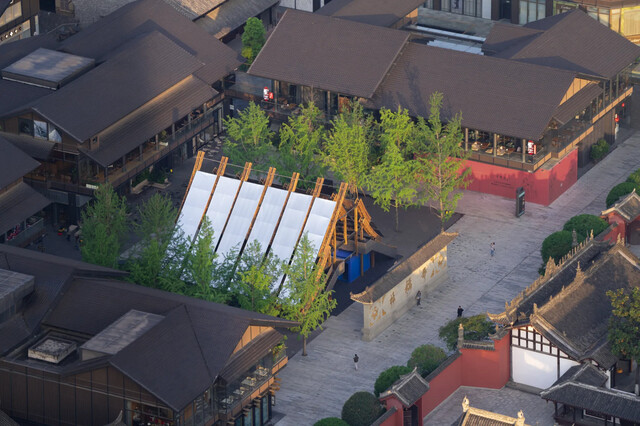

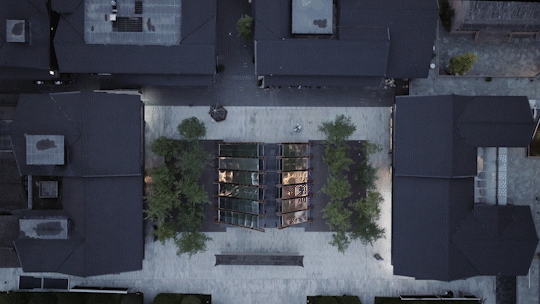

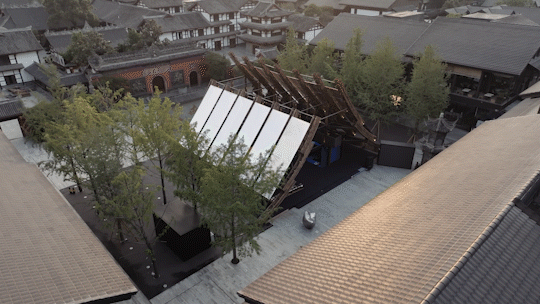

漫廣場西臨紗帽街,毗鄰城市幹道紗帽街,這裡是城市路網的目的地,亦是出發點。我們希望這是一座精神屬性的建築,猶如插入一面旗幟,開始重新連接世界。

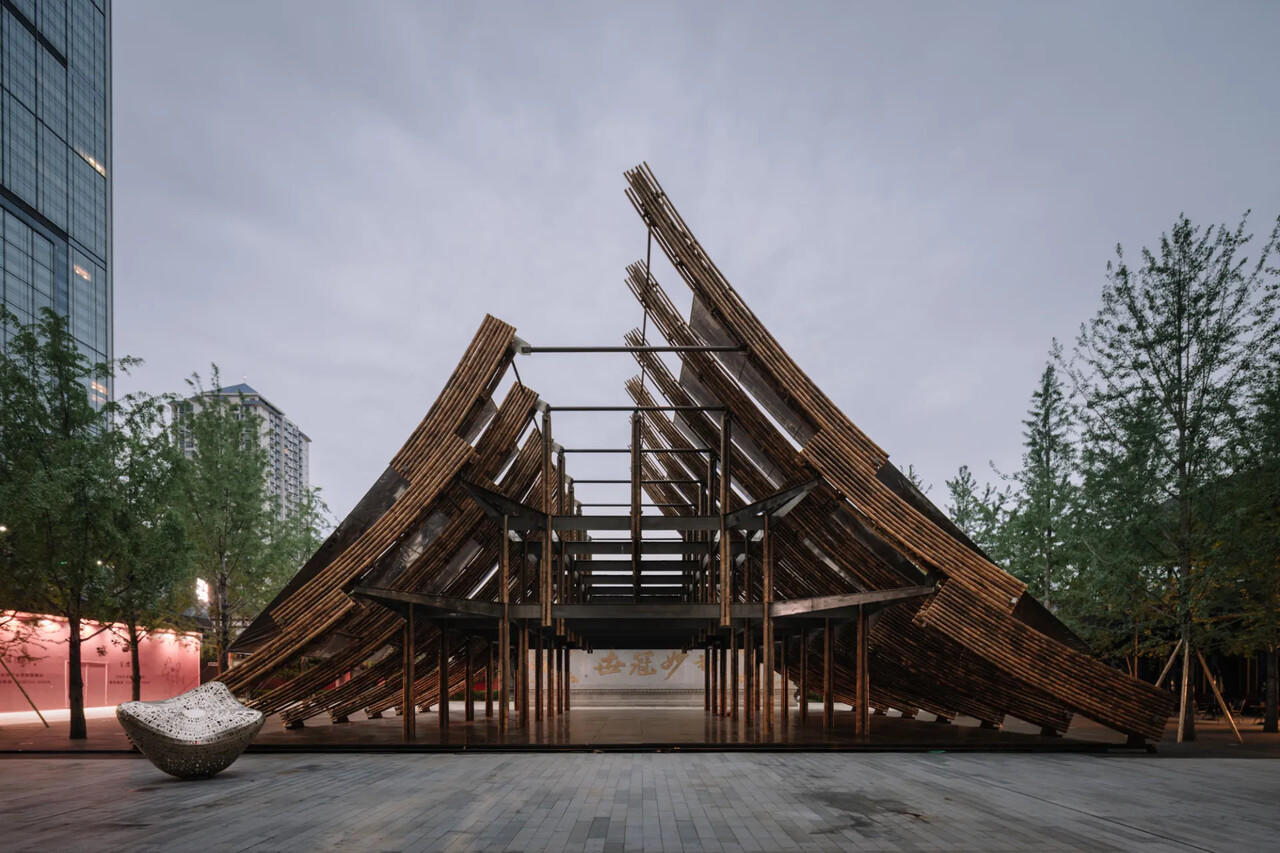

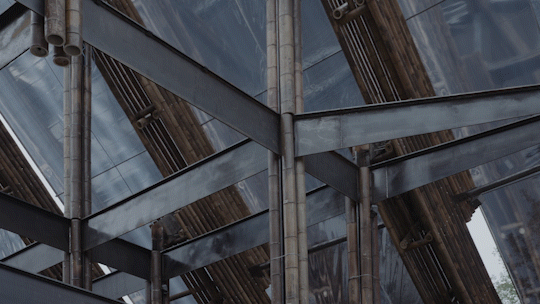

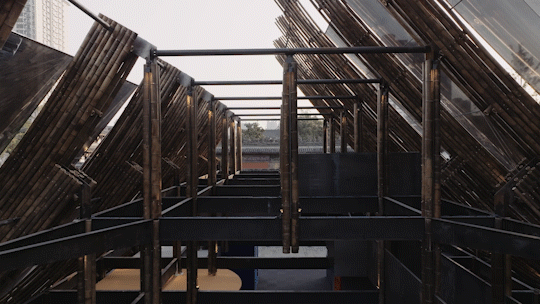

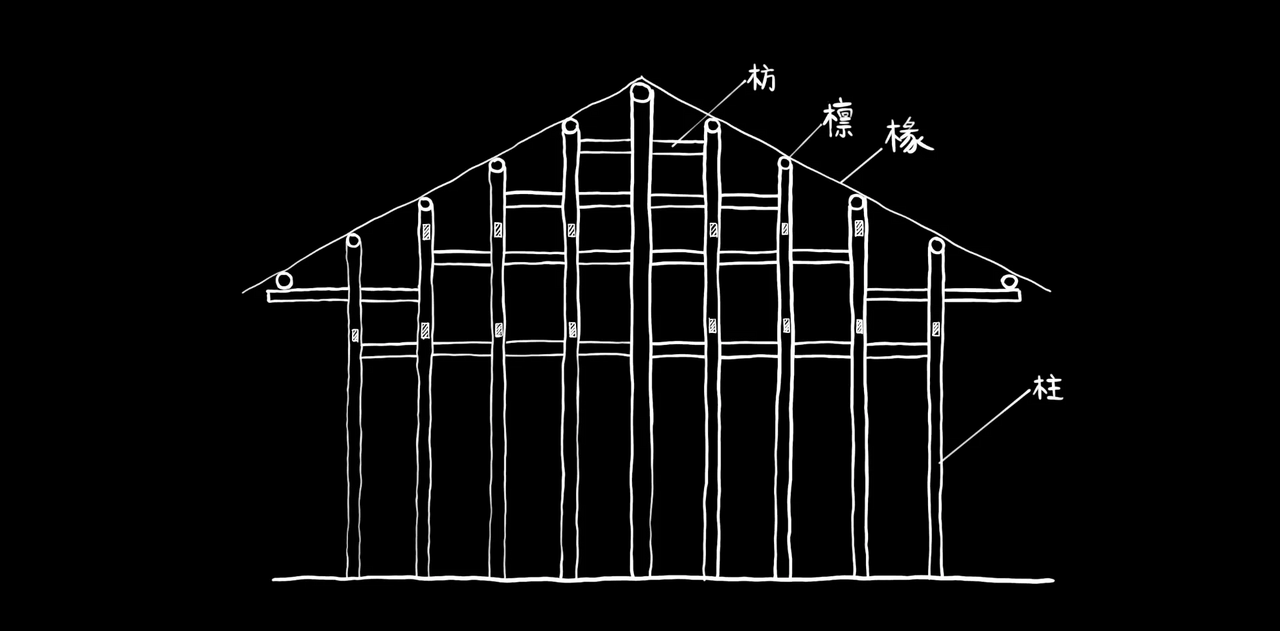

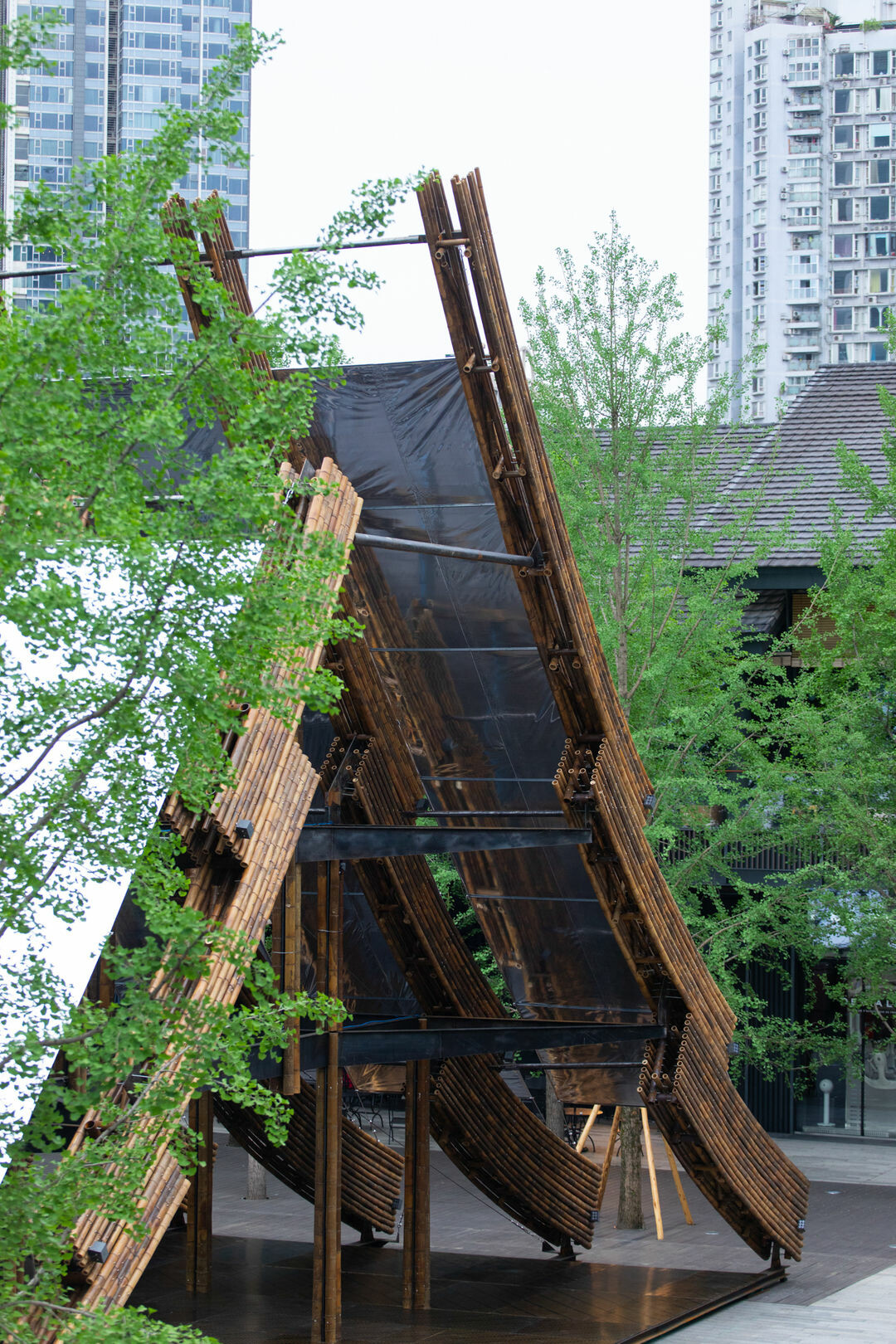

這座建築以穿斗為綱,自然形成阡陌為常的平面交錯體系。穿斗,民間亦稱做「川斗」,是一種常見於川蜀的建築結構形式,成都亦甚。我們將「穿斗」作為支撐「撇捺大梁」的載體,一樓置入8個藝術空間,成為「潮流」的發聲地。往上二樓穿插鋼結構遊廊,達到三樓平台,俯瞰漫廣場。站在三樓平台,向北遠眺聖古大慈寺匾額,往西總覽現代太古里街巷,而身處平台位置,猶如古今匯聚的時光通廊,在穿斗結構上,形成另一種竪向的交錯連通的體系。

Architecture weaves through alleys, traffic intersects lanes.

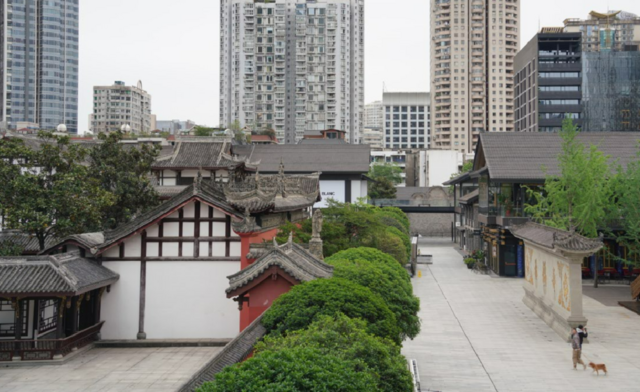

The plaza extends west to Shamao Street, adjacent to the city's main thoroughfare. This is both a destination and a starting point in the urban road network. We hope that this is a building with spiritual attributes, like planting a flag, starting to reconnect with the world.

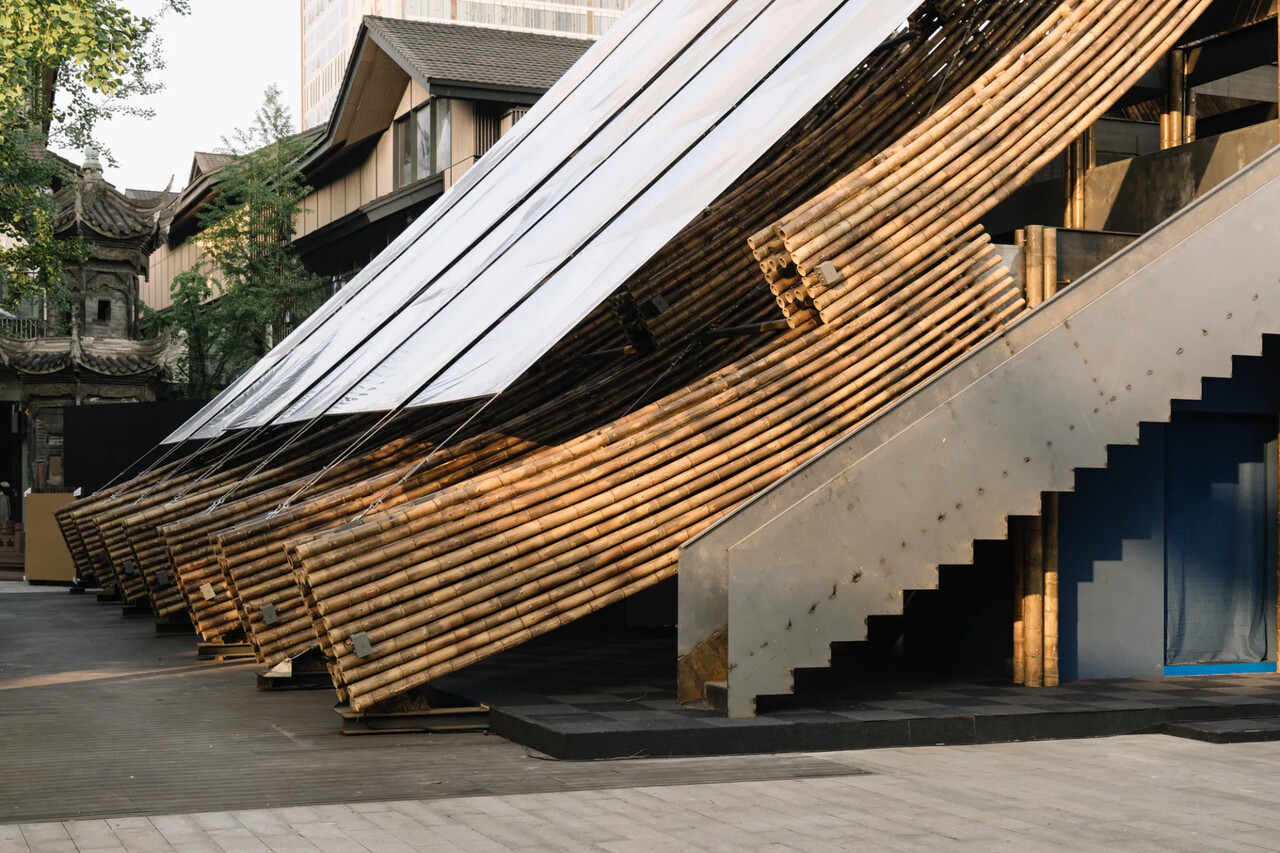

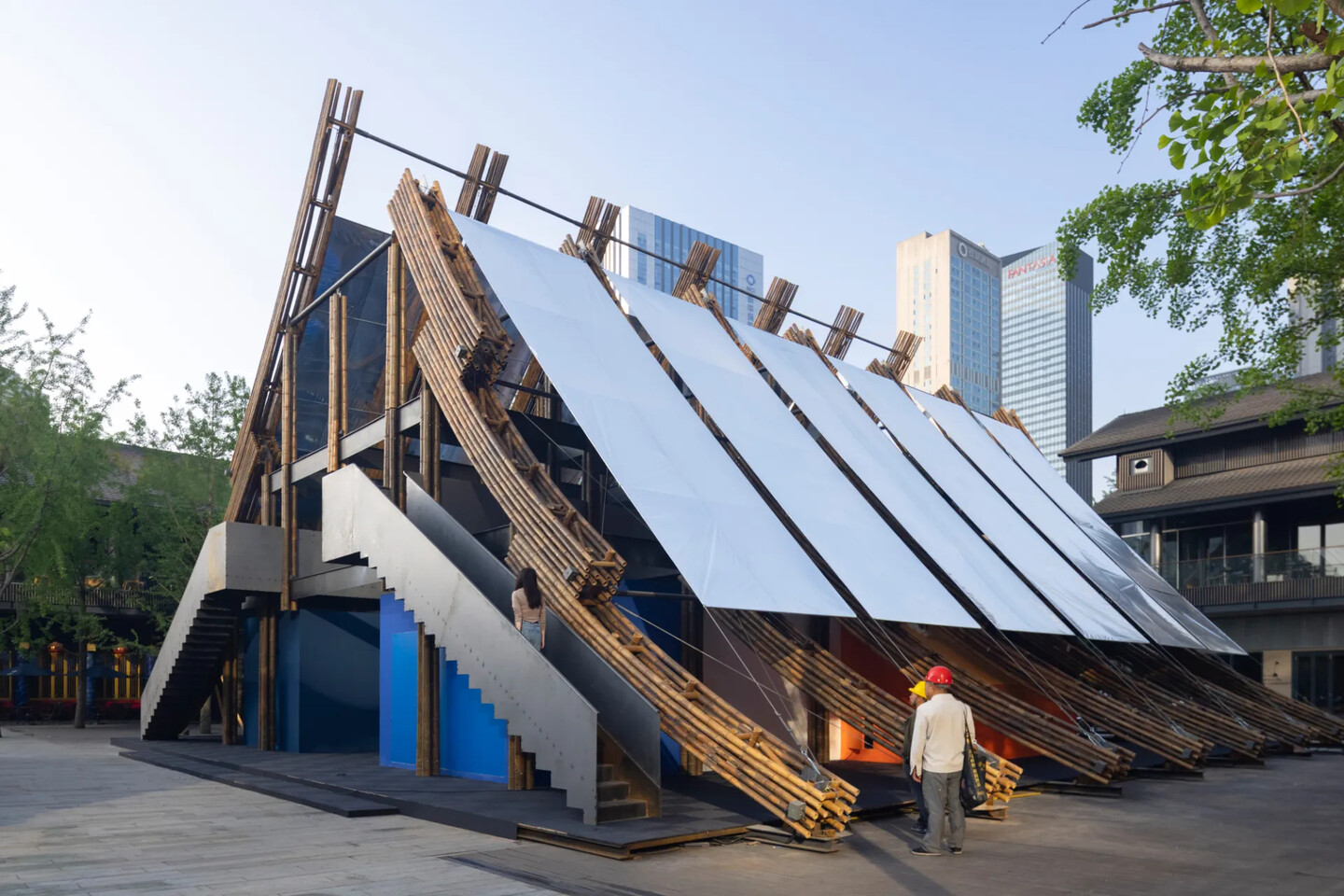

The building is constructed on the principle of 'chuandou,' naturally forming a system of intersecting planes that mimic the pattern of lanes ('qianmo'). 'Chuandou', also referred to as 'chuandou' in the local dialect, is an architectural structure common in Sichuan and Shu, and especially prevalent in Chengdu. We use 'chuandou' as the carrier to support the 'piena' (left and right strokes) beams. On the first floor, we have placed eight art spaces, becoming a 'trendy' place to voice out. The steel structure corridor on the second floor leads to the third-floor platform, overlooking the vast plaza. Standing on the third-floor platform, one can look far north to the plaque of Shengu Daci Temple, and west to the streets of modern Taikoo Li. The platform itself feels like a time corridor where the past and present converge. On the 'chuandou' structure, a vertically intersecting and connected system is formed.

棚膜竹凳 可續再生

整座限時建築的可回收材料可以分為3種:

1 竹結構,在拆除之後,作為戶外竹凳被再次使用。

2 鋼結構,在拆除之後被廢鋼廠全部回收。

3 銀色膜布,作為戶外竹凳的坐墊,通過綁扎凳墊的形式,再次循環使用。


「對於我們設計這座建築設計的起心立意,是希望他完成了限時使命之後,可以被帶去任何地方。」當20天的展期到期之後,裸築更新將他化作戶外長凳,繼續在這裡,靜靜的守護這片土地上的迎來過往,同時也實踐了成都遠洋太古里的可持續發展的理念。或者如果有可能,能夠為成都這座城市,延續作為「建築零件」的另一部分的使命。

Bamboo stools under a canopy, sustainable and renewable.
The recyclable materials of the entire temporary building can be divided into three types:

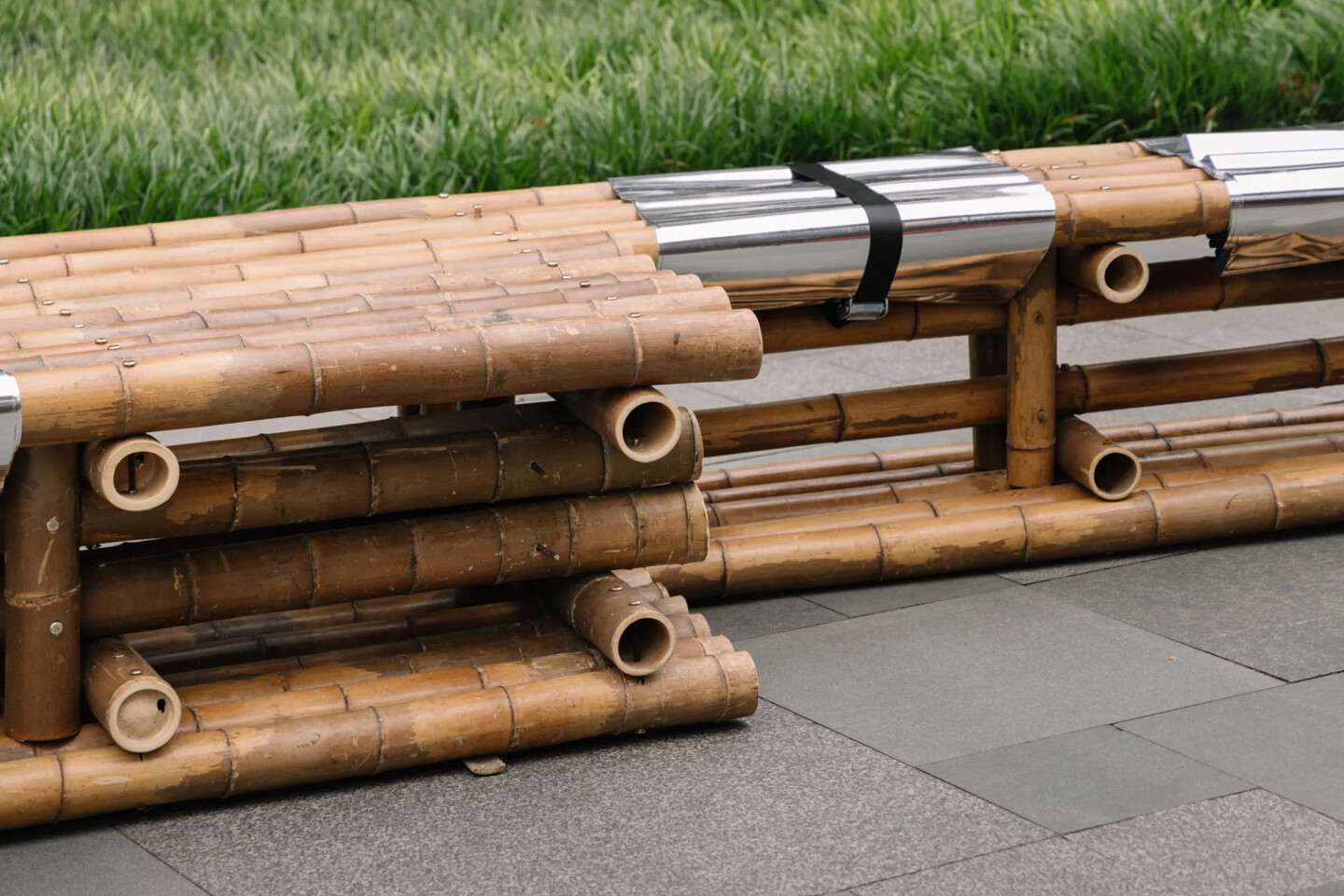

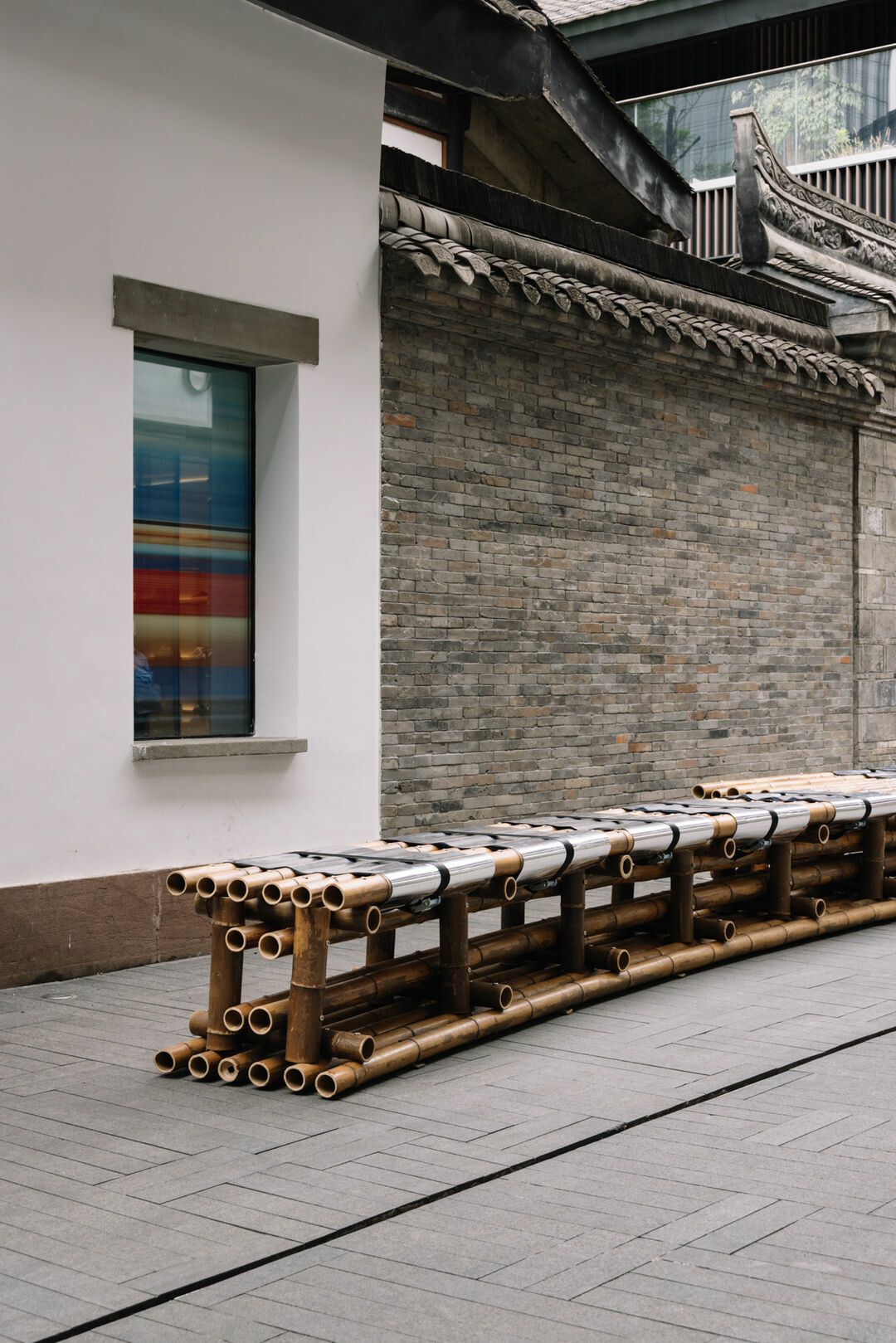

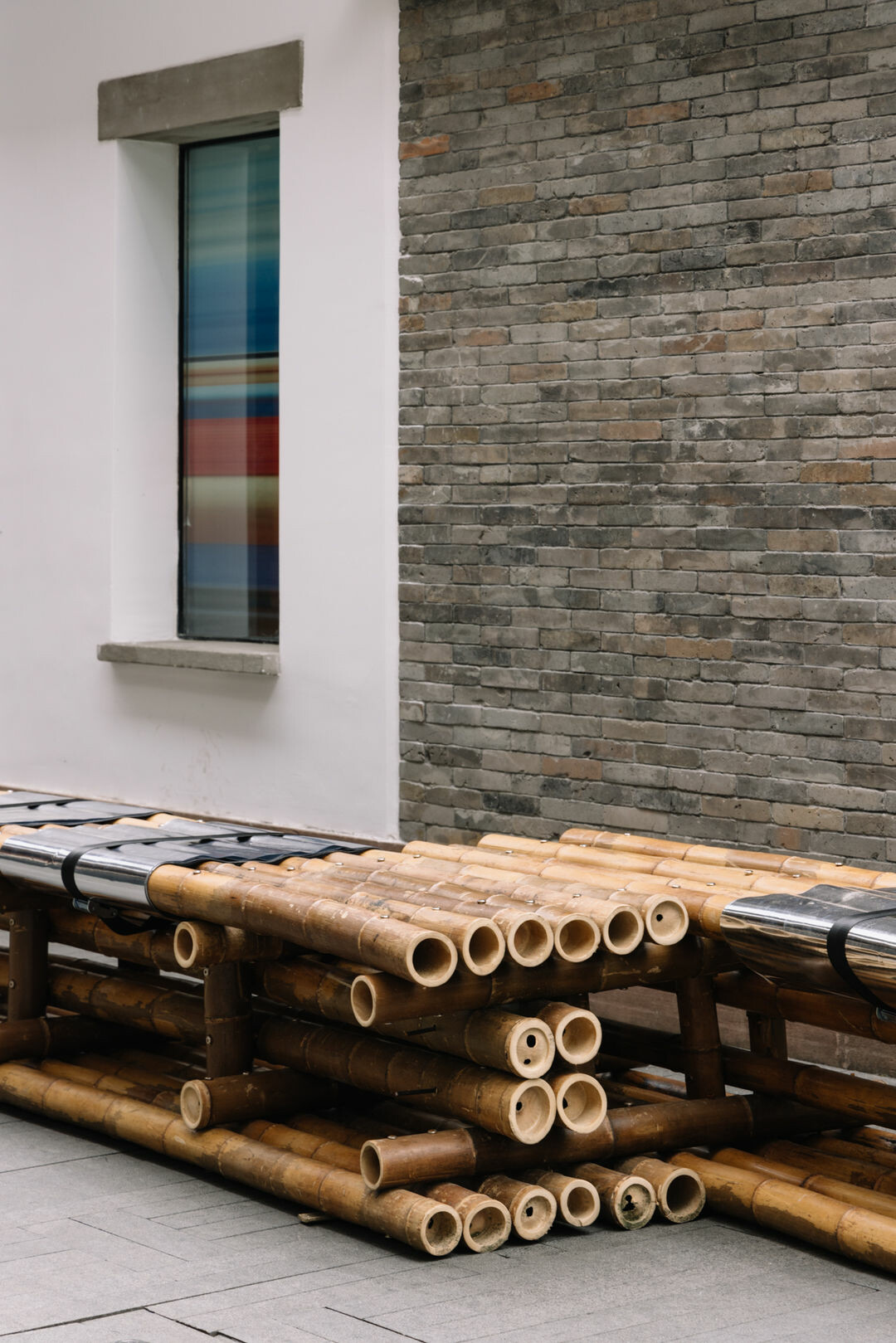

1. Bamboo structure: After being dismantled, it is reused as outdoor bamboo stools.
2. Steel structure: After being dismantled, it is completely recycled by a scrap steel factory.
3. Silver film: Used as the seat cushion for outdoor bamboo stools, it is recycled for further use by being tied to the stool.

"Our original intention in designing this building was that, after it has completed its temporary mission, it could be taken anywhere." After the 20-day exhibition period expires, Naked Renewal transforms it into an outdoor bench, quietly guarding the land it sits on, observing the comings and goings, and simultaneously embodying the sustainable development ethos of Chengdu's Swire Pacific Place. Or if possible, it could continue its mission as another 'architectural component' for the city of Chengdu.

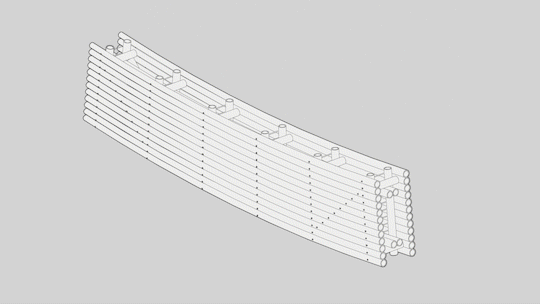

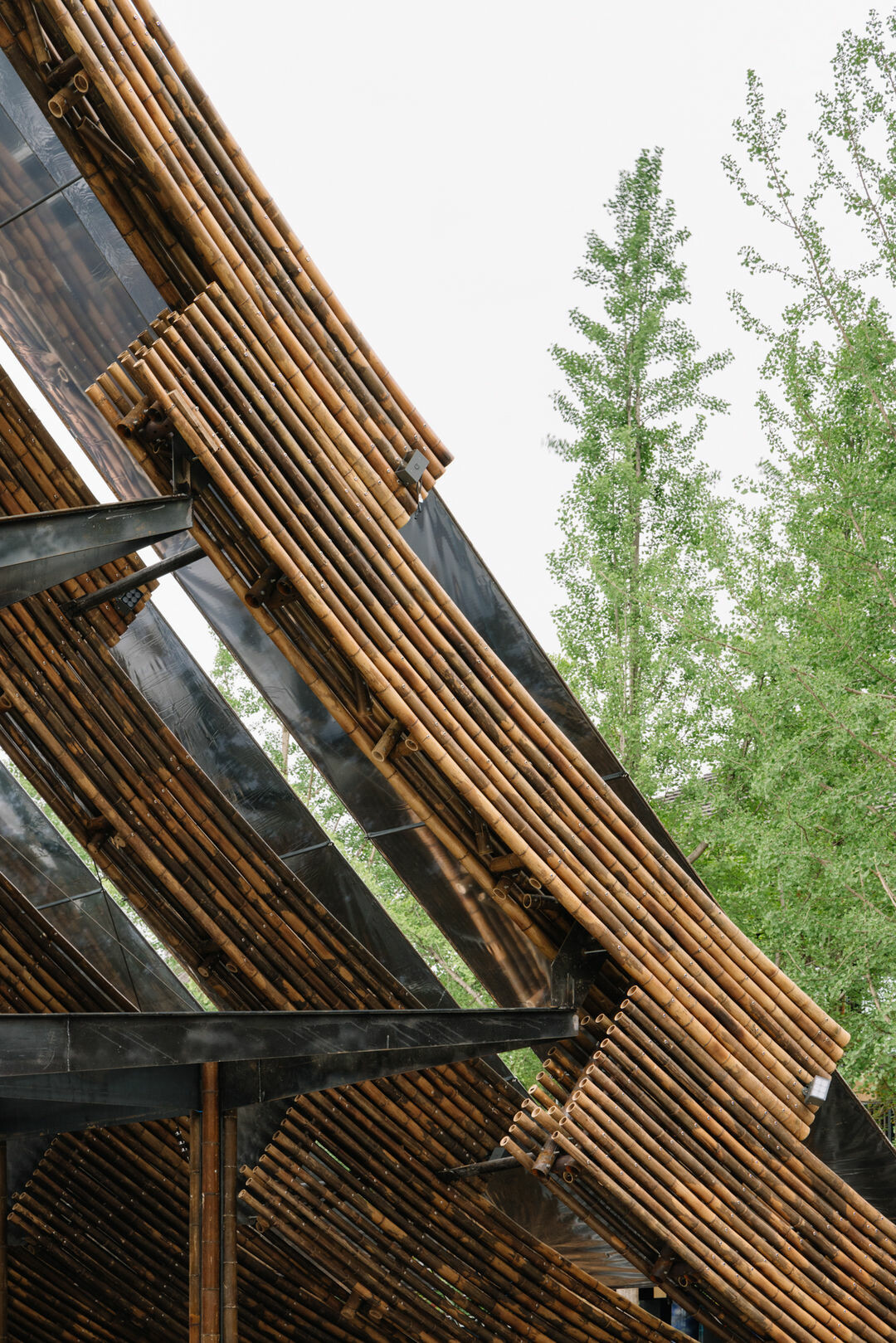

竹梁
MORE
篷布
MORE

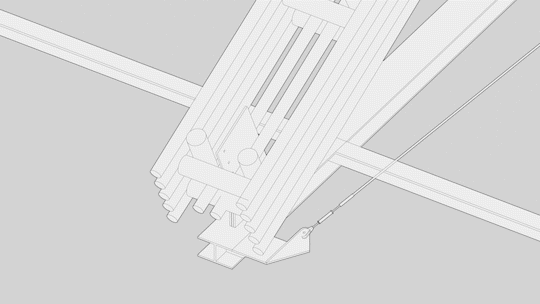

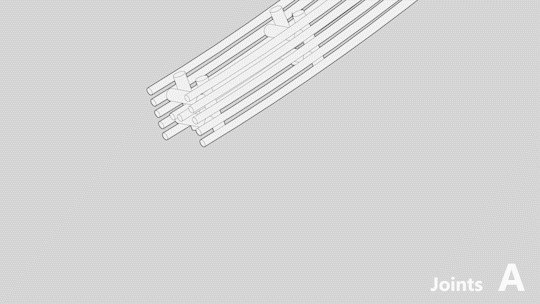

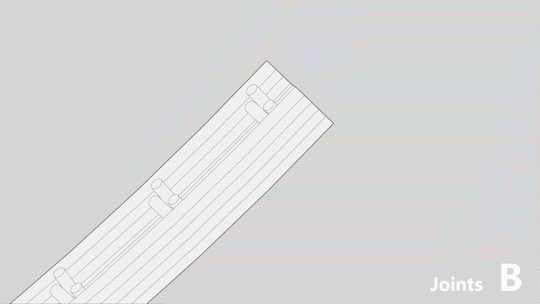

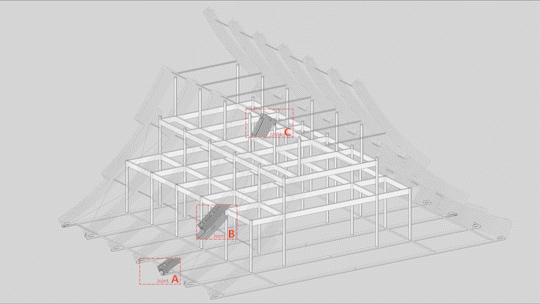

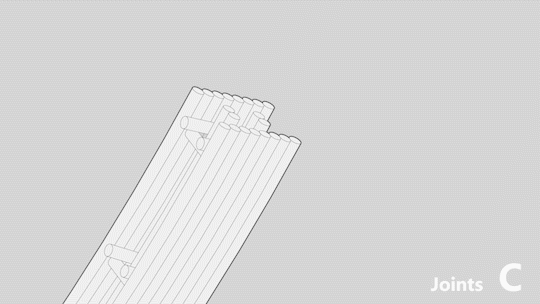

結構連接點
MORE
結構連接點



MORE
結構連接點



MORE


建築設計|裸築更新建築設計事務所

roarc.design


攝影|存在建築-建築攝影•韓大王

Wen Studio  wenstudio.com
